Type

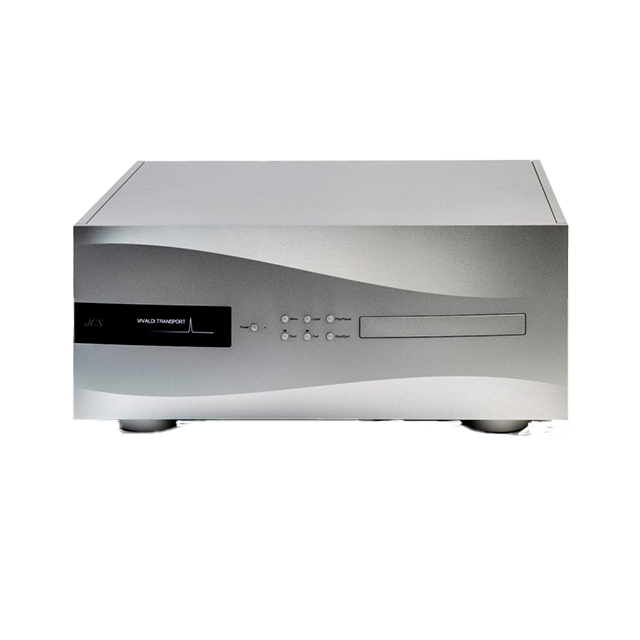

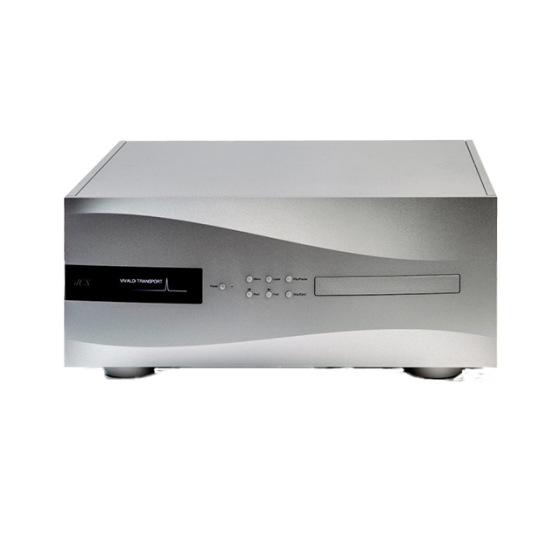

Upsampling CD/SACD Transport

Colour

Silver or Black

CD Mechanism

Dual laser CD/SACD mechanism (TEAC VRDS NEO™ VMK3).

Dimensions(WxDxH)

444mm/17.5” x 435mm/17.2” x 196mm/7.8”.
Allow extra depth for cable connectors.

Weight

23.2kg/51.1lbs

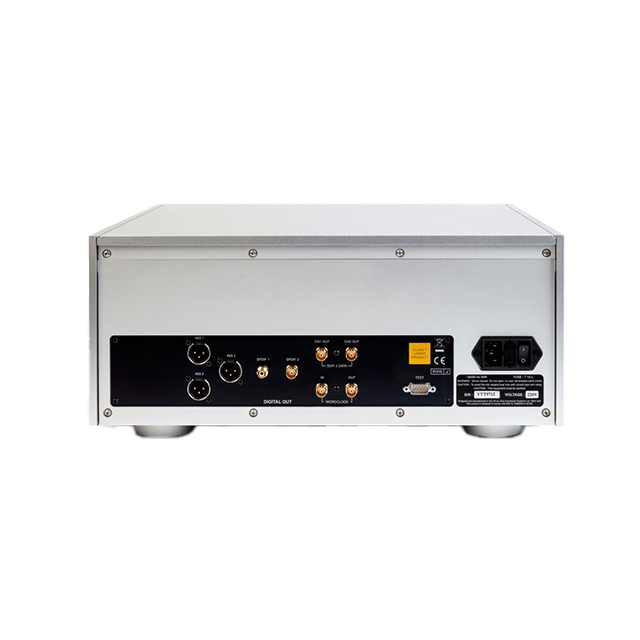

Digital I/O

1x Dual AES interface on 2x 3-pin male XLR connectors, outputs dCS-encrypted DSD data, whether a CD or SACD is playing. A menu setting changes the format to DXD (24/352.8) when a CD is playing.

1x AES/EBU on 3-pin male XLR connector, outputs CD format data (16 bits at 44.1kS/s), whether a CD or SACD is playing.

2x SPDIF on 1x RCA Phono and 1x BNC connectors. Each outputs CD format data, whether a CD or SACD is playing.

1x SDIF-2 interface on 2x BNC connectors, outputs CD format data, whether a CD or SACD is playing.

Word Clock I/O

Word Clock output on 1x BNC connector. With the Transport in Master mode, a TTL-compatible 44.1kHz Word Clock derived from the internal crystal oscillator is available on this output. The calibration accuracy when shipped is +/-10ppm, not temperature compensated.

Word Clock input on 1x BNC connector, accepts standard Word Clock at 44.1, 88.2 or 176.4kHz. Sensitive to TTL levels.

Software Updates

Updates are loaded directly from CD-R.

Local Control

dCS Premium Remote handset is supplied with Vivaldi DAC.

RS232 (controlled by a third party device).

dCS-programmed Nevo Q50 Remote handset is available for the Vivaldi range as an optional extra.

Power Supply

Factory set for 100, 115, 220 or 230V AC, 49-62Hz.

Power Consumption

28 Watts typical/40 Watts maximum.
