規格
| 種類 | Digital-to-Digital Converter. |
| 顏色 | Silver or Black. |
| 尺寸 | 444mm/17.5” x 435mm/17.2” x 125mm/5.0”. Allow extra depth for cable connectors. Allow space for air flow around the unit. |
| 重量 | 14.2 kg/31.3lbs. |

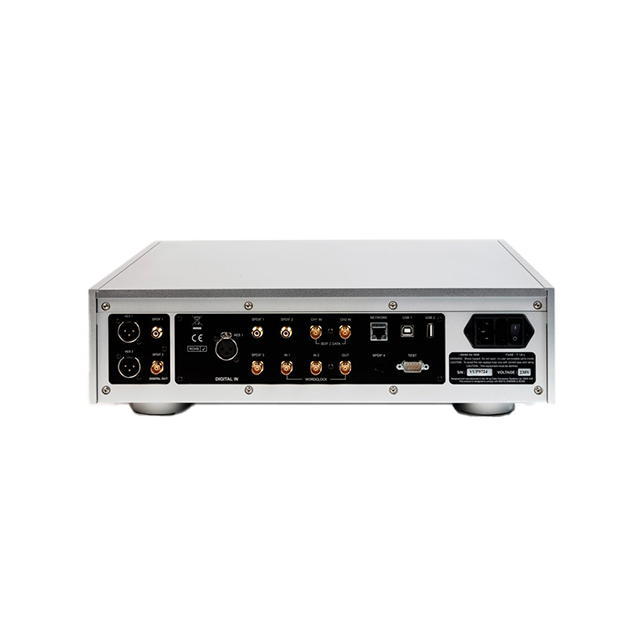

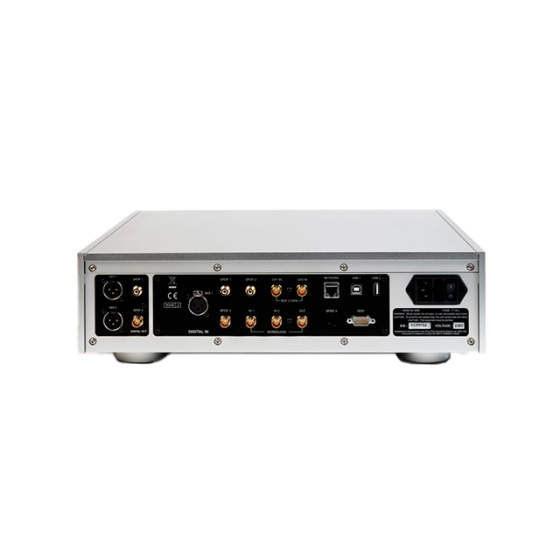

| 數位輸入 | Network interface on an RJ45 connector – Acts as UPnP™ renderer, streaming digital music from a NAS or local computer over a standard Ethernet network, decoding all major lossless formats including FLAC, WAV & AIFF up to 24 bit 384kS/s native sample rate or DSD/128 in DFF or DSF formats. Other supported file formats include ALAC, MP3, M4a, AAC, WMA and OGG. Some formats are limited to lower sample rates. Accepts data streamed from an iPod, iPhone or iPad via Apple AirPlay, 44.1 or 48kS/s only. USB 2.0 interface on a type B connector. Operates in Asynchronous USB mode, Audio Class 1 or Class 2. Class 2 mode will accept up to 24 bit PCM at up to 384 kS/s and DSD/64 or DSD/128 in DoP format. USB-on-the-go interface on A-type connector, streams audio files from a USB flash drive. Will stream up to 24 bit PCM at up to 384kS/s plus DSD/64 or DSD/128 in DFF or DSF formats and operates in asynchronous USB mode. 1x AES3 on a 3-pin female XLR connector. 4x SPDIF on 2x RCA Phono, 1x BNC connectors and 1x TosLink optical connector. 1x SDIF-2 PCM interface on 2x BNC connectors + Word Clock. All electrical digital inputs will accept PCM data at up to 24 bit PCM at 32, 44.1, 48, 88.2, 96, 176.4, 192kS/s & DoP. The TosLink input and SDIF-2 interface are limited to a maximum of 96kS/s. |
| 數位輸出 | 2x AES3 on 3-pin female XLR connectors. Each outputs 24 bit PCM at 32, 44.1, 48, 88.2, 96, 176.4, 192kS/s & DSD/64 in DoP format, OR as a Dual AES pair at 88.2, 96, 176.4, 192, 352.8, 384kS/s or DSD/64 or DSD/128. 2x SPDIF on RCA Phono and BNC connectors. Each outputs 24 bit PCM at 32, 44.1, 48, 88.2, 96, 176.4, 192kS/s & DoP. |
| 升頻選項 | Data from any input may be converted to 24 bit PCM at 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8 or 384kS/s or DSD/64 or DSD/128. The output sample rate must be equal to or greater than the input sample rate. |
| 時鐘輸入/出 | Word Clock input on 2x BNC connector. Accepts standard Word Clock at 32, 38.4, 44.1, 48, 88.2, 96, 176.4 or 192kHz. Sensitive to TTL levels. Word Clock output on 1x BNC connector. Outputs standard Word Clock at a frequency equal to the (single wire) output data rate, or 44.1kHz when set to output DSD. |
| Spurious Responses | Better than -100dB0 @ 20Hz-20kHz for Fs> 32kS/s, 20Hz-14kHz for 32kS/s. |
| Filters | A choice of anti-alias filters is available for 12 popular conversions. |
| 軟體升級 | Downloaded and installed from the internet via the Network interface. |
| 操作方式 | Vivaldi 2.0 Controller App available for iOS. dCS Premium Remote handset is supplied with Vivaldi DAC. RS232 (controlled by a third party device). |
| 電源供應 | Factory set for 100, 115, 220 or 230V AC, 50-60Hz. |
| 消耗功率 | 15 Watts typical/18 Watts maximum. |
