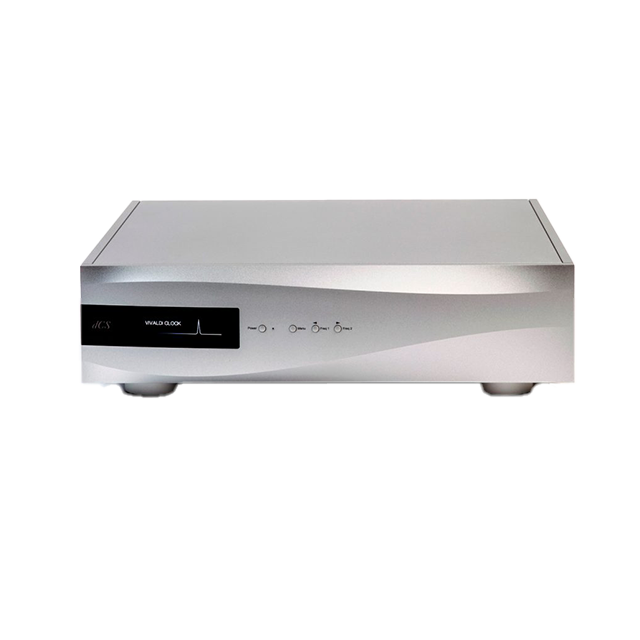

Vivaldi Master Clock 主時鐘訊號產生器
規格
種類 Class 1 Master Clock.
時鐘頻率 44.1, 48, 88.2, 96, 176.4 or 192kHz.
顏色 Silver or Black.
尺寸 444mm/17.5” x 435mm/17.2” x 126mm/5.0”. Allow extra depth for cable connectors.
重量 13.6kg/29.9lbs.
時鐘精準度 Better than +/-1ppm when shipped. Typically +/-0.1ppm when shipped and stabilised.

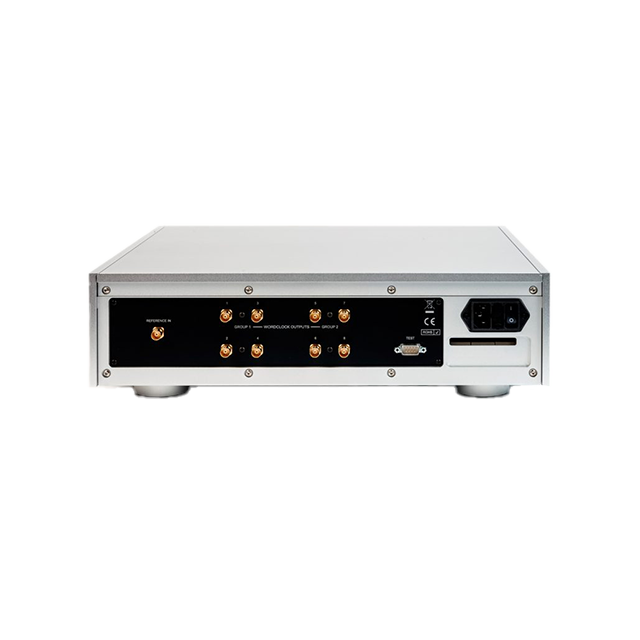

時鐘輸入/出 Two groups of 4 independently buffered outputs on 75Ω BNC connectors. Each group may be set to a different clock frequency
數位輸出 External Reference Input on 1x 75Ω BNC connector. Accepts either Word Clock or AC coupled signals at 1MHz, 5MHz & 10MHz. Lock range is +/-300ppm.
熱機時間 Typically 1 minute to rated accuracy
軟體升級 Loaded from CD-R or PC / Upsampler via Reference Input.
操作方式 dCS Premium Remote handset is supplied with Vivaldi DAC. RS232 (controlled by a third party device).
電源供應 Factory set for 100, 115, 220 or 230V AC, 50-60Hz.
消耗功率 10 Watts typical/12 Watts maximum.
