規格

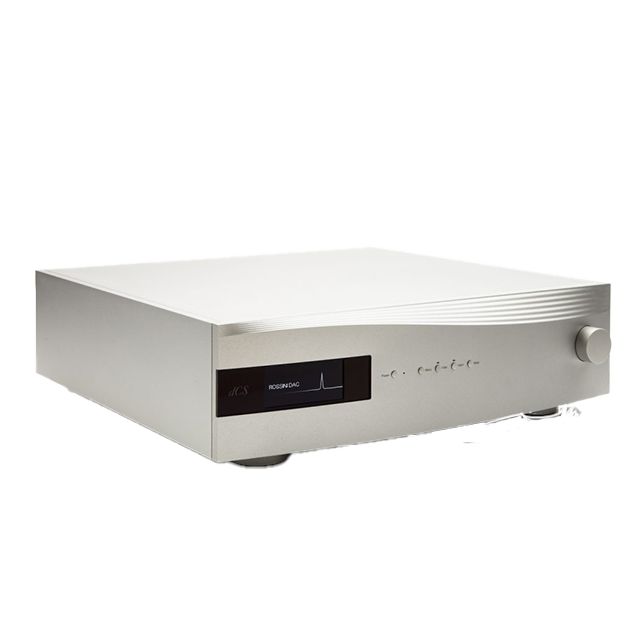

| 種類 | Upsampling Network DAC. |
| 顏色 | Silver or Black. |
| 尺寸 | 444mm/17.5” x 435mm/17.2” x 125mm/5.0”. Allow extra depth for cable connectors. |
| 重量 | 15.6kg/34.3lbs. |
| 數位類比轉換方式 | dCS proprietary Ring DACTM topology. |

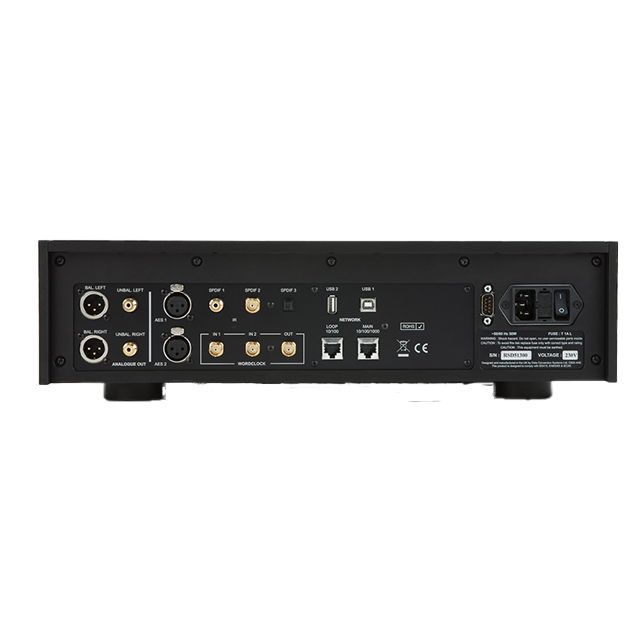

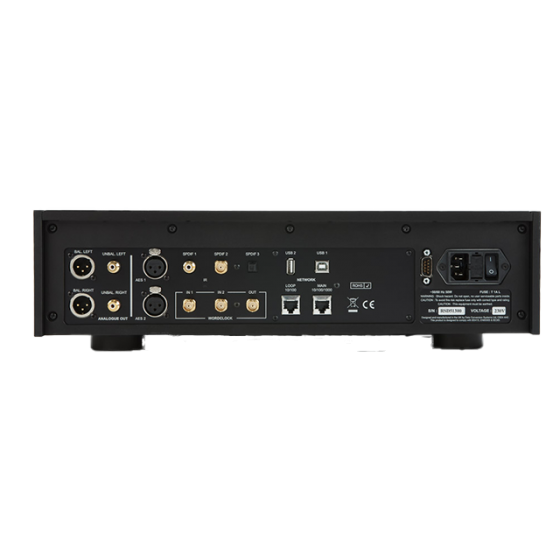

| 數位輸入 | Network interface on an RJ45 connector – Acts as a UPnPTM renderer in Asynchronous mode, streaming digital music from a NAS or local computer over a standard Ethernet network, decoding all major lossless formats including FLAC, WAV & AIFF at up to 24 bit 384kS/s native sample rate, plus DSD/64 & DSD/128 in DFF/DSF format. Other supported formats include WMA, ALAC, MP3, AAC & OGG. Some formats are limited to lower sample rates. Accepts data streamed from an iPod, iPhone or iPad via Apple AirPlay, 44.1 or 48kS/s only. Network Loop Out connector on a second RJ45 connector. USB 2.0 interface on a B-type connector operating in Asynchronous mode, will accept up to 24 bit PCM at up to 384kS/s plus DSD/64 & DSD/128 in DoP format. Operates in Class 1 or 2 mode. USB-on-the-go interface on type A connector operating in Asynchronous mode, streams digital music from a flash drive at up to 24 bit 384kS/s plus DSD/64 or DSD/128. 2x AES/EBU on 3-pin female XLR connectors. Each will accept PCM at up to 24 bit 192kS/s or DSD/64 in DoP format. Used as a Dual AES pair, it will accept PCM at up to 384kS/s, DSD/64 & DSD/128 in DoP format or dCS-encrypted DSD. 2x SPDIF on 1x RCA Phono and 1x BNC connectors. Each will accept PCM at up to 24 bit 192kS/s or DSD/64 in DoP format. 1x SPDIF optical on a Toslink connector will accept PCM at up to 24 bit 96kS/s. |
| 類比輸出 | Output levels: 2V or 6V rms for full-scale input, set in the menu. Balanced outputs: 1 stereo pair on 2x 3-pin XLR male connectors (pin 2 = hot, pin 3 = cold). These outputs are electronically balanced and floating. Output impedance is 3Ω, maximum load is 600Ω (10k-100kΩ is recommended). Unbalanced outputs: 1 stereo pair on 2x RCA phono connectors. Output impedance is 52Ω, maximum load is 600Ω (10k-100kΩ is recommended). |
| 時鐘輸入/出 | 2x Word Clock Inputs on 2x BNC connectors, accept standard word clock at 44.1, 48, 88.2, 96, 176.4 or 192kHz. The data rate can be the same as the clock rate or an exact multiple of the clock rate. Sensitive to TTL levels. Word Clock Output on 1x BNC connector. In Master mode, a TTL-compatible word clock appears on this output. |
| Residual Noise | 24-bit data: Better than -113dB0, 20Hz-20kHz unweighted. (6V output setting). |
| L R Crosstalk | Better than -115dB0, 20Hz-20kHz. |
| Spurious Responses | Better than -105dB0, 20Hz-20kHz. |
| Filters | PCM mode: up to 6 filters give different trade-offs between the Nyquist image rejection and the phase response. DSD mode: 4 filters progressively reduce out-of-audio band noise level. |
| 升頻選項 | DXD as standard or optional DSD, DSDx2 upsampling. |
| 軟體升級 | Loaded from CD-R via PCM digital inputs or PC via USB input. Download and update functionality available via Rossini App. |
| 控制方式 | dCS Rossini App for Unit Configuration and Music Playback. RS232 interface (controlled by a 3rd party automation system). IR remote control – dCS premium remote control available as an optional extra. |
| 電源供應 | Factory set to either 100, 115/120, 220 or 230/240V AC, 50-60Hz. |
| 消耗功率 | 23 Watts typical / 28 Watts maximum. |
| 驅動系統 | Windows Vista / 7 / 8.1 / 10, Mac OSX 10.10. dCS USB driver is required for Windows in Audio Class 2 Mode. |
