| 種類 |
Class 1 Master Clock. |
| 時鐘頻率 |
44.1kHz or 48kHz. |
| 顏色 |
Silver or Black. |
| 尺寸 |
444mm/17.5” x 435mm/17.2” x 64mm/2.6”. Allow extra depth for cable connectors. |
| 重量 |
8.3kg/18.3lbs. |
| 時鐘精度度 |
Better than +/-1ppm when shipped, over an ambient temperature range of 10°C to 30°C. Typically +/-0.1ppm when shipped and stabilised. |
| 時鐘輸入/出 |

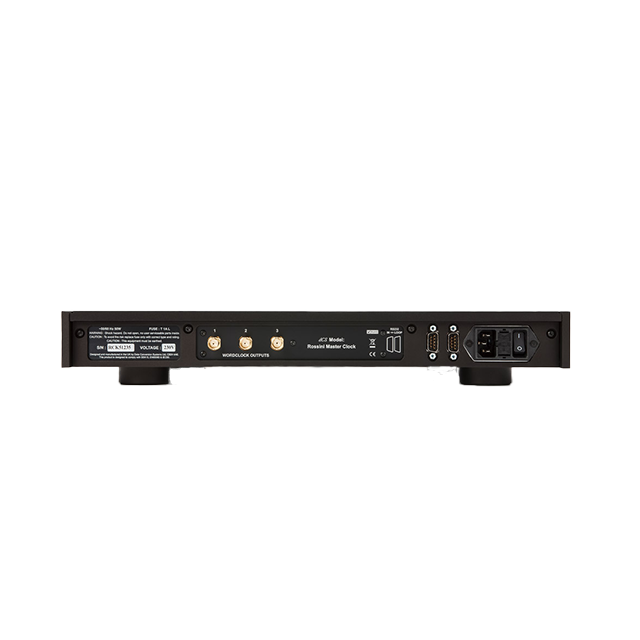

3 independently buffered outputs on 75Ω BNC connectors. Output 1: fixed at 44.1kHz Output 2: fixed at 48kHz Output 3: 44.1kHz, RS232 controllable. |
| 熱機時間 |
Typically 1 minute to rated accuracy. |
| 控制方式 |
RS232 (limited to Power and Clock 3 output frequency). |
| 電源供應 |
Factory set to either 100, 115/120, 220 or 230/240V AC, 50-60Hz. |
| 消耗功率 |
3 Watts typical / 4 Watts maximum. |
