規格
| 輸入電壓 | 220 – 240 V (50 – 60 Hz) 100 – 120 V (50 – 60 Hz) |
| 消耗功率 | ＜0.5 W standby idle 300 W / 200 W max 1600 W |
| 增益 | Dual:+ 26 dB Mono:+ 32 dB |
| 輸出功率 | 600 W @ 8 Ω (2 × 150 W*) 1200 W @ 4 Ω (2 × 300 W*) 2000 W @ 2 Ω (2 × 600 W*) *in dual mode |
| 脈衝功率 | ＞12,000 W |
| 頻率響應 (– 3 dB) | 0 – 2 MHz (0 – 1 MHz*) *in dual mode |
| 總諧波失真 | ＜0.0003% at 50 W @ 4 Ω (20 Hz – 20 kHz) |
| IM 失真 | ＜0.005% SMPTE ＜0.0006 CCIR |
| 訊噪比 | 108 dB (5 W @ 1 kHz) |
| 阻尼係數 | ＞10 000 |
| 最大輸出電流 | 120 A (limited) |

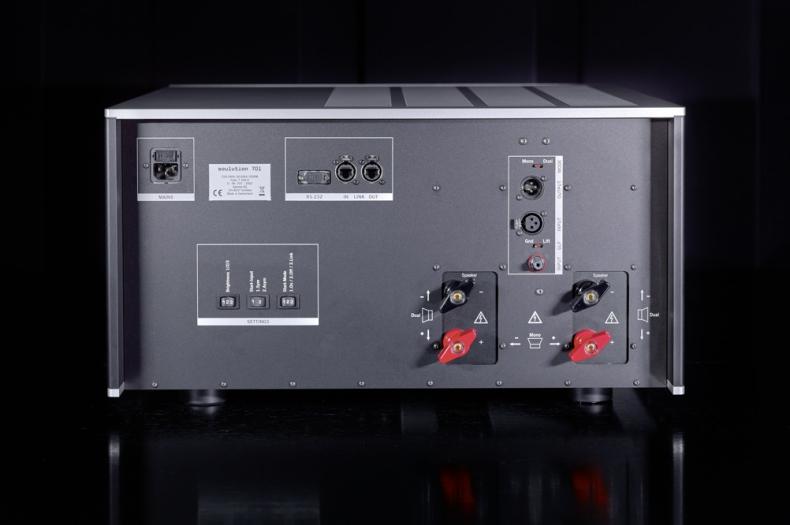

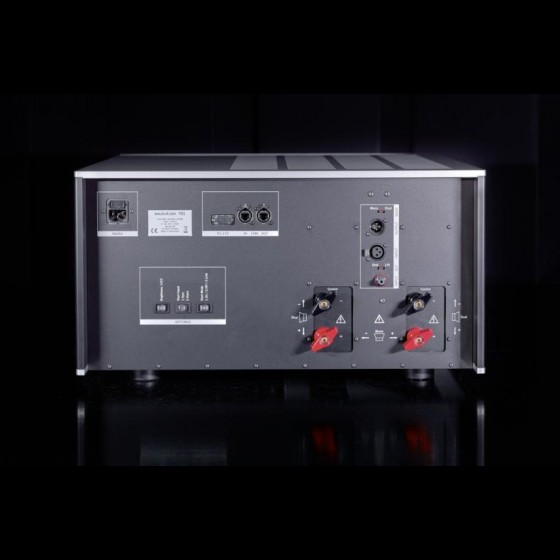

| 輸入端子 | 1 × balanced (XLR) 1 × unbalanced (RCA) |
| 輸入阻抗 | 2.3 kΩ balanced (XLR) 4.0 kΩ unbalanced (RCA) |
| 尺寸 | 560 × 306 × 585 mm (W × H × D) |
| 重量 | approx. 75 kg |
| LINK (remote turn-on) | 12 V control signal |
