規格
| 輸入電壓 | 220 – 240 V (50 – 60 Hz) 100 – 120 V (50 – 60 Hz) |
| 消耗功率 | ＜0.5 W standby 60 W device in operation |

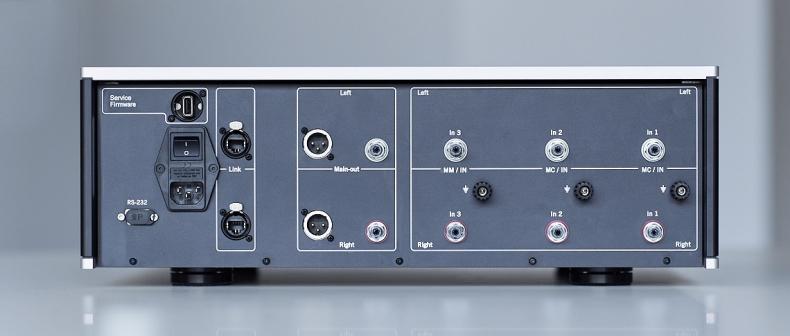

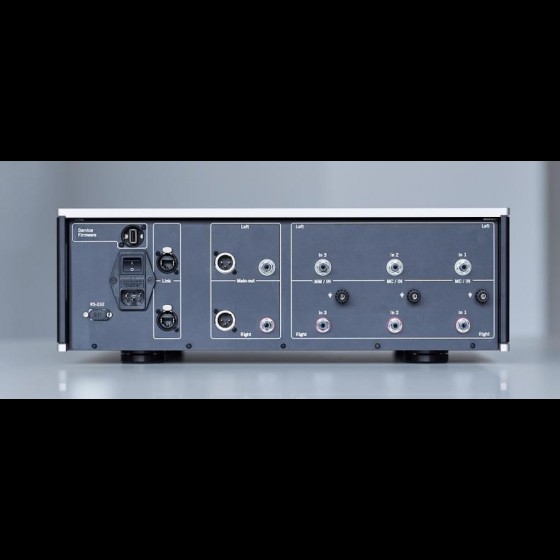

| 輸入端子 | 2 × MC unbalanced (RCA) 1 × MM unbalanced (RCA) |
| 輸入阻抗 | MC: 10 Ω – 1000 Ω MM: 47 Ω – 47 kΩ and 0 – 750 pF |
| 輸出端子 | 1 × balanced (XLR) 1 × unbalanced (RCA) |
| 頻率響應 (– 3 dB) | 0 – 1 MHz |
| 總諧波失真 | ＜0.002% (20 Hz – 20 kHz) |
| 訊噪比 | 100 dB |
| 聲道分離度 | 60 dB @ 1 kHz |
| 增益 (最大) | MC: + 78 dB balanced + 72 dB unbalanced MM: + 66 dB balanced |
| 音量控制 | 0 to – 79 dB in 1 dB steps |
| 輸出阻抗 | 2 Ω balanced (XLR) 2 Ω unbalanced (RCA) |
| 輸出電壓 | 16 VRMS balanced (XLR) 8 VRMS unbalanced (RCA) |
| 輸出最大電流 | 1 A (limited) |
| 尺寸 | 480 × 167 × 450 mm (W × H × D) |
| 重量 | approx. 30 kg |
| LINK (remote turn-on) | 12 V control signal |
