規格
| 511 Stereo/Dual | 511 Mono | |
| 輸入電壓 | 100 – 240 V (50 – 60 Hz) | 100 – 240 V (50 – 60 Hz) |
| 消耗功率 | ＜0.5 W standby idle 100 W max 1600 W |
＜0.5 W standby idle 200 W max 2000 W |

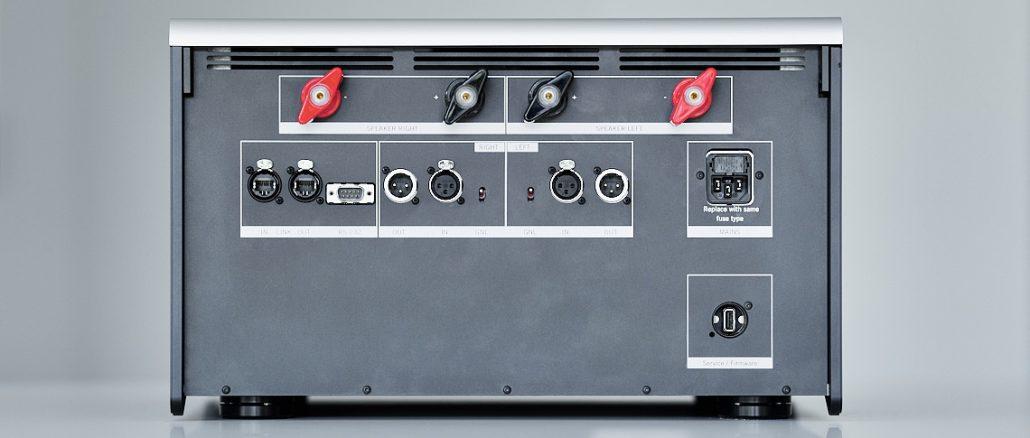

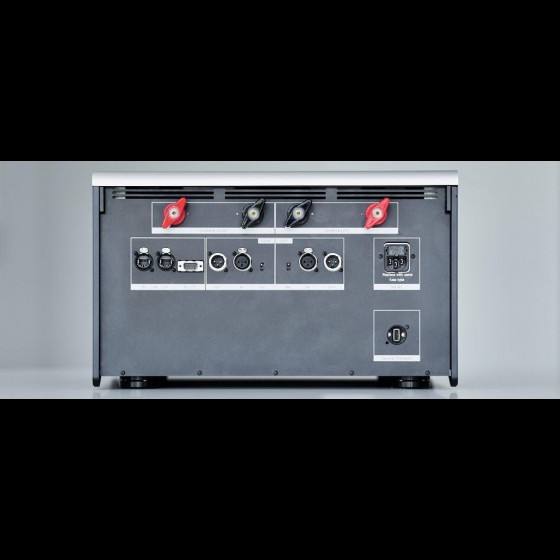

| 輸出端子 | 2 pairs Cu-terminal, gold plated |
2 pairs Cu-terminal, gold plated |
| 增益 | + 26 dB | + 32 dB |
| 輸出功率 | 2 × 150 W @ 8 Ω 2 × 300 W @ 4 Ω 2 × 600 W @ 2 Ω |
600 W @ 8 Ω 1200 W @ 4 Ω 2000 W @ 2 Ω |
| 脈衝 | ＞2 × 2000 W | ＞4500 W |
| 頻率響應 (– 3 dB) | 0 – 800 kHz | 0 – 1.6 MHz |
| 總諧波失真 | ＜0.001% at 50 W @ 4 Ω (20 Hz – 20 kHz) |
＜0.001% at 200 W @ 4 Ω (20 Hz – 20 kHz) |
| IM失真率 | ＜0.005 % SMPTE ＜0.0006 CCIR |
＜0.005 % SMPTE ＜0.0006 CCIR |
| 訊噪比 | 108 dB (5 W @ 1 kHz) | 108 dB (5 W @ 1 kHz) |
| 聲道分離度 | ＞120 dB @ 1 kHz | |
| 阻尼係數 | ＞10,000 | ＞5,000 |
| 最大輸出電流 | 45 A (limited) | 45 A (limited) |
| 輸入端子 | 1 × balanced (XLR) | 1 × balanced (XLR) |
| 輸入阻抗 | 2 kΩ balanced (XLR) | 2 kΩ balanced (XLR) |
| 尺寸 | 442 × 270 × 448 mm (W × H × D) | 442 × 270 × 448 mm (W × H × D) |
| 重量 | approx. 30 kg | approx. 30 kg |
| LINK (remote turn-on) | 12 V control signal | 12 V control signal |
