規格
| 輸入電壓 | 100 – 120 V (50 – 60 Hz) |
| 消耗功率 | ＜0.5 W standby 100 W device in operation |

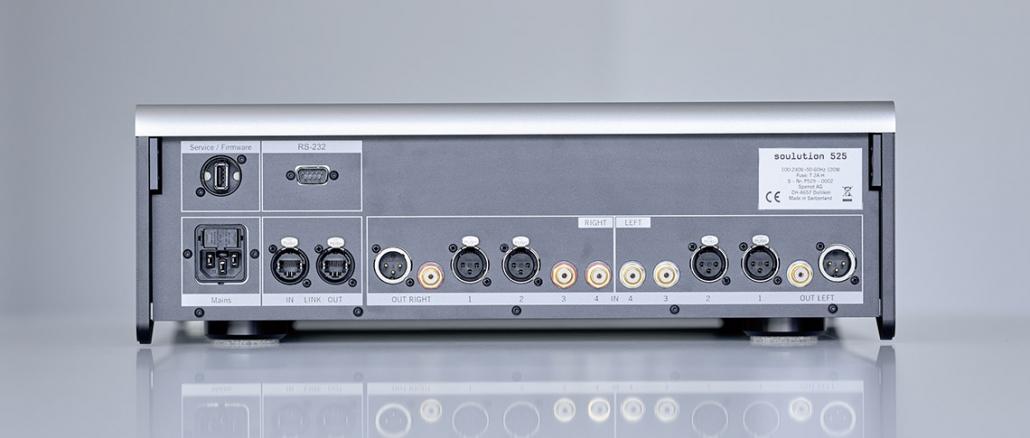

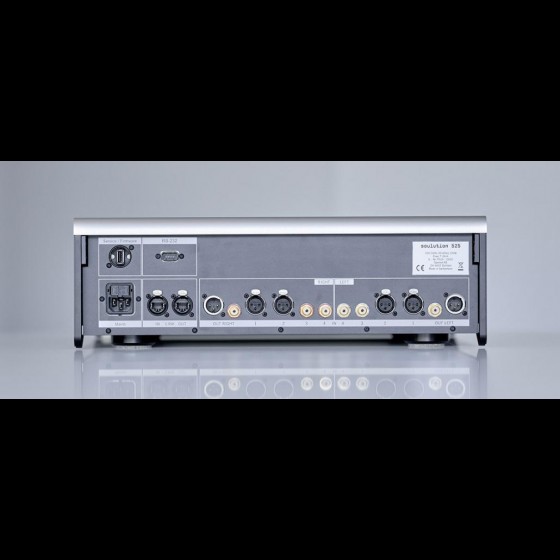

| 輸入端子 | 2 × balanced (XLR) 2 × unbalanced (RCA) |
| 輸入阻抗 | 820 kΩ balanced (XLR) 47 kΩ unbalanced(RCA) |
| 輸出端子 | 1 × balanced (XLR) 1 × unbalanced (RCA) |
| 頻率響應 (– 3 dB) | 0 – 2 MHz |
| 總諧波失真 | ＜0.00009% (20 Hz – 20 kHz) |
| 訊噪比 | 120 dB |
| 聲道分離度 | 130 dB @ 1 kHz |
| 最大增益 | + 15 dB |
| 音量控制範圍 | + 15 dB to – 79 dB in 1 dB steps |
| 輸出阻抗 | 10 Ω balanced (XLR) 10 Ω unbalanced (RCA) |
| 輸出電壓 | 16 VRMS balanced (XLR) 8 VRMS unbalanced (RCA) |
| 最大輸出電流 | 0.2 A (limited) |
| 尺寸 | 442 × 143 × 448 mm (W x H x D) |
| 重量 | approx. 20 kg |
| LINK (remote turn-on) | 12 V control signal |
